PNEUMATIC  KNOCKERS

Pneumatic knockers enable sticked material to detach from silo, container and pipe walls. Compressed air is injected under the piston and puts a spring under tension. After release of air, the piston moved by spring strokes the basis. The basis is equipped with an elastomer washer to protect stricken surface.

FKL in – type pneumatic knockers

Force and frequency of stroke variable.

Properties:

  • two modes of action: single or interval impact mode,
  • controlled power of stroke and controlled constant work,
  • lubrication-free,
  • working temperature from -40°C to 150°C,
  • flexible range of applications.

Construction:

  • four bolts attaching to the basis,
  • anodized, hardened aluminum casing,
  • steel piston,
  • elastomer washer.

Usual applications:

Releasing sticked materials from silo and container walls, compacting and loosening bulk material.

Technical data

ModelWorking pressure [bar]Work/Stroke [Nm]Impulse/Stroke [Ns]Air consumption [l/min]Max. wall width [mm]Weight [kg]
FKL 25 in3,0 – 6,51 – 50,5 – 1,00,07 – 0,221,03
FKL 50 in3,0 – 6,55 – 151 – 3,50,1 – 0,331,85
FKL 100 in4,0 – 6,510 – 501 – 10,50,5 – 1,154,5
FKL 150 in5,3 – 8,050 – 1401 – 291,2 – 2,089,5
FKL 200 si7,5100 – 2001 – 57,52,2 – 3,31214,8

FKL mi – type pneumatic knockers

Odbijak pneumatyczny FKL mi

Automatic control. Regulated stroke force.

Properties:

  • wide range settings of stroke force and timing,
  • wide range of application in industry.

Construction:

  • the piston locks air vent with speed set on choking valve,
  • anodized, hardened aluminum casing
  • steel piston,
  • elastomer washer.

Usual applications:

Broad field of application. Open air and humid environment, volatile atmosphere. Releasing sticked materials from silo, container, filter and pipeline walls, compacting and loosening bulk material.

Technical data

ModelWorking pressure [bar]Work/Stroke [Nm]Impulse/Stroke [Ns]Frequency of impacts [min-1]Air consumption [l/min]Max. wall width [mm]Weight [kg]
FKL 100 mi6 – 810 – 405 – 100,5 – 2000,5 – 1,154,5

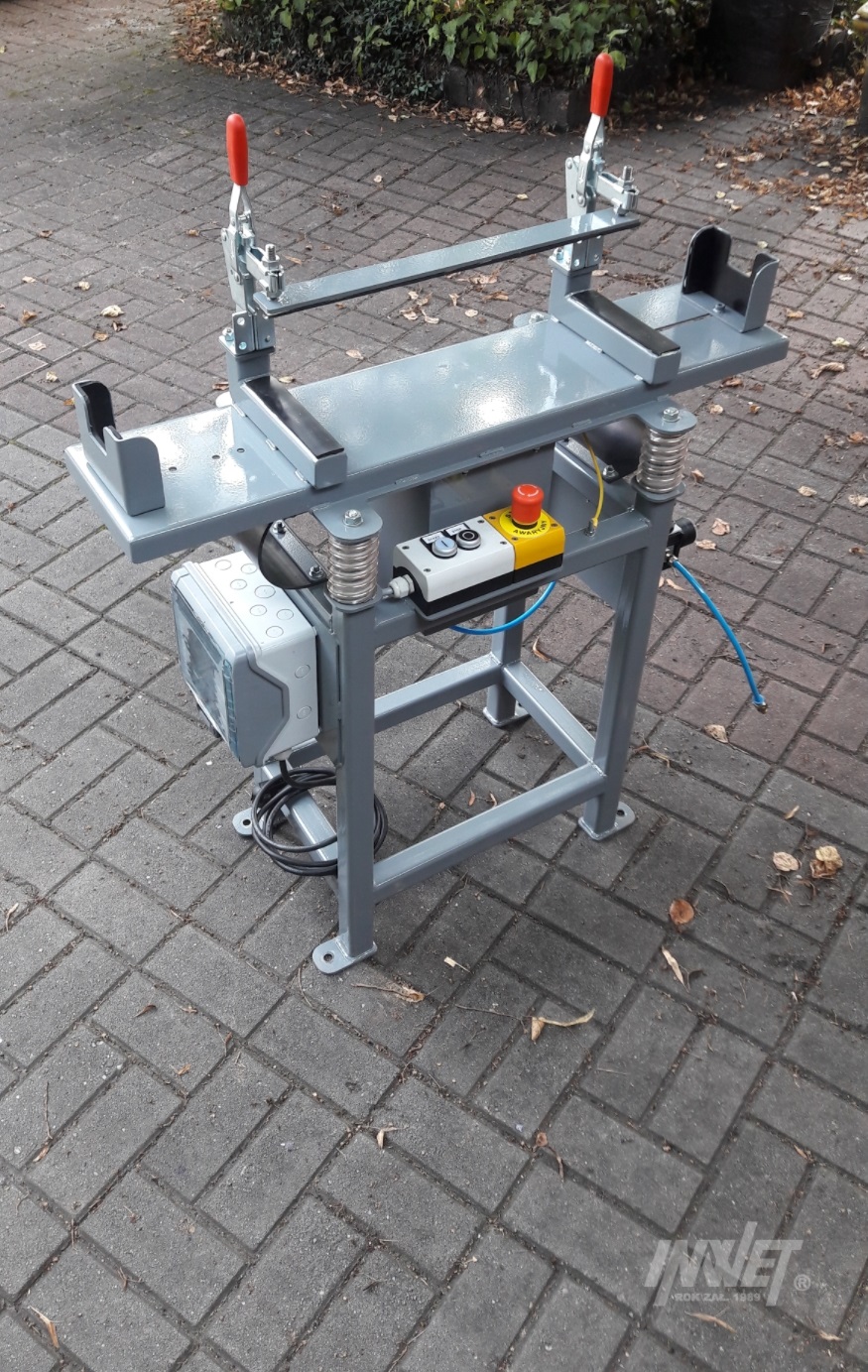

Gallery
